KAYE

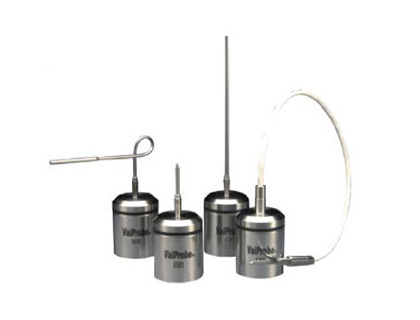

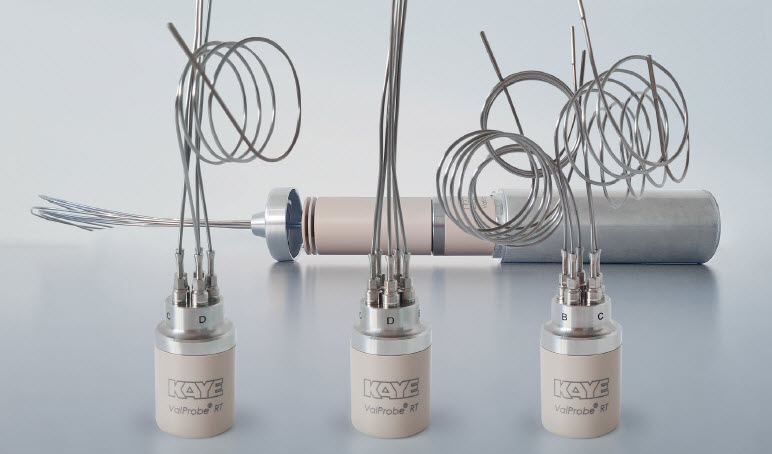

Kaye ValProbe RT 5-Channel Bendable Logger
สามารถ วัด ได้ ถึง 5 จุดพร้อมกัน
1 and 2-Channel Bendable Logger
- Temperature range for logger sensor: -85°C to 400°C
- Single and dual bendable sensor available
- Sensor length 12, 24, 36”
- Sensor diameter 2.4mm; 0.095“
5-Channel Bendable Logger
- Temperature range for logger sensor: 0°C to 400°C
- Five bendable sensors
- Sensor length 24”
- Sensor diameter 2mm; 0.078“

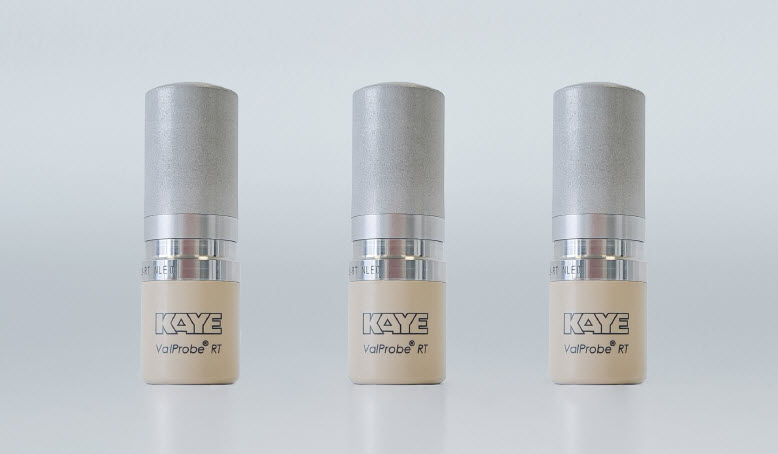

Kaye Valprobe RT CO2 Logger
Kaye Valprobe RT CO2 Logger
เพิ่มเติม ข้อมูลรวมของเครื่องสอบเทียบของ KAYE ตัวอื่นๆ รวมถึง Standard Probe IRTD

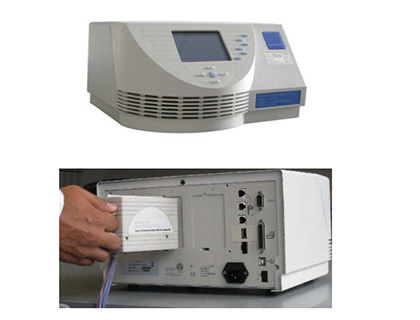

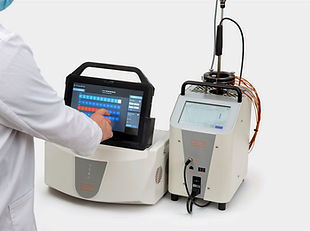

Kaye AVS Validator
Validator AVS Wired Temperature Validation System
- Enhanced data handling and redundancy (4-levels)
- Expanded input capacity, types, and range
- Improved scan time 1/sec for 48 inputs (EN554/ISO17665)
- Stand-alone operation with Console docking station

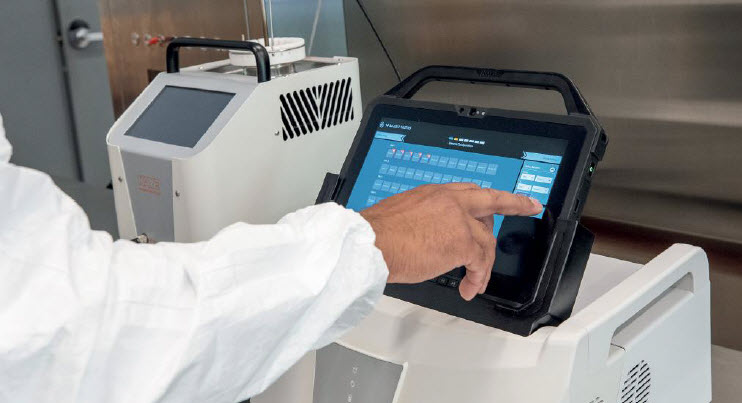

Validator AVS Console
- Hardened, rugged Console pre-loaded with all Kaye software
- Easy-to-operate / state-of-the art intuitive user interface
- Ethernet/ WiFi/ Docking Station connections
- Asset centric concept for process equipment and Kaye hardware
- Console capable of running existing Kaye product software.
- Improved Reporting Analysis Tool –backward compatible
- Simplified validation (GAMP-5)

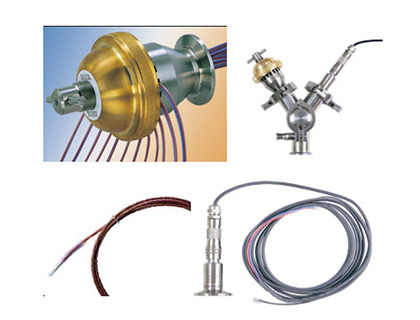

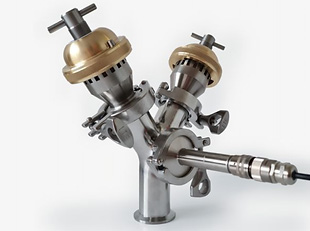

Kaye Thermocouple FeedThru Kit

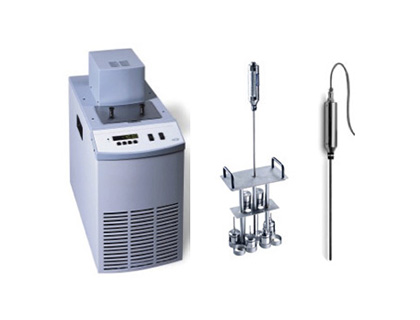

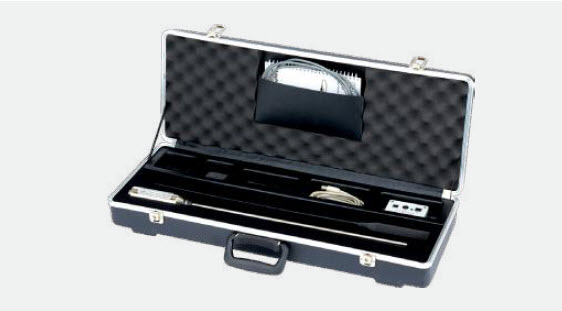

IRTD 400 Standard Probe
- Temperature range -196 to 420°C
- Accuracy over range ±0.025°C
- Resolution 0.001°C
- Sensor element 200 Ohm Platinum sensor
- Sheath material Inconel™ 600
- Immersion depth 101.6mm (4")
- Calibration Traceable to NIST or PTB; Recommended calibration period is 1 year
- Measurement rate 30 readings per second
- Ambient temperature range 0 to 60°C (32 to 140°F)
- Humidity 0 to 95% non-condensing
- Dimensions Overall length: 603mm (23.75"); Grip: 89mm x 32mm (3.5" x 1.25") Sensor sheath: 457mm x 6.35mm (18" x 0.25")

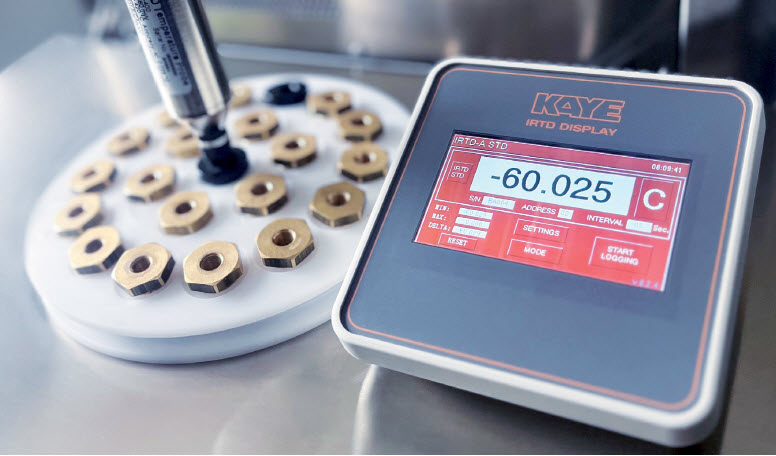

IRTD Display with resolution 0.000 deg C
หน้าจอแสดงผล แบบสแตนด์อโลน

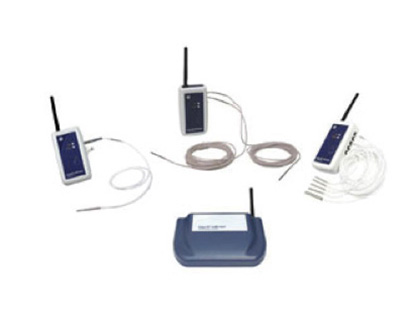

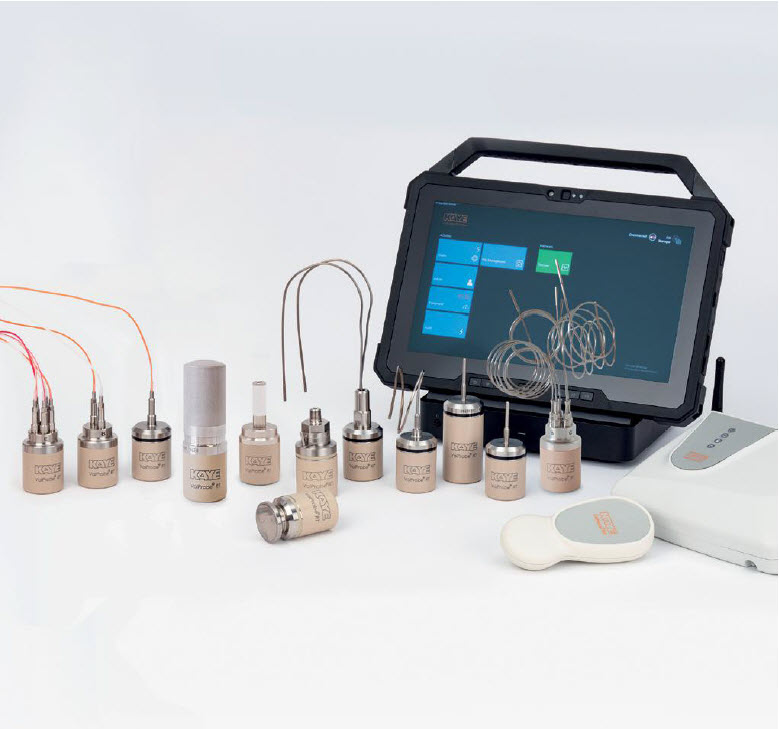

Kaye ValProbe RT (Real Time-RF) - Wireless Data Logger Product Family
- Life data under harsh conditions via RF during validation study
- RF-Range up to 150 meters
- Temperature Range -85 to 400°C
- Up to 100,000 samples per sensor
- Scan rate down to 1 second
- ValProbe system capacity 25 loggers / 50 sensors
- Customer interchangeable batteries
- Accuracy up to 0.1°C

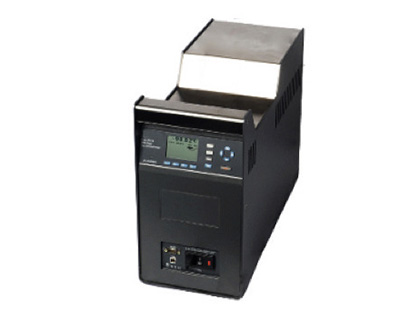

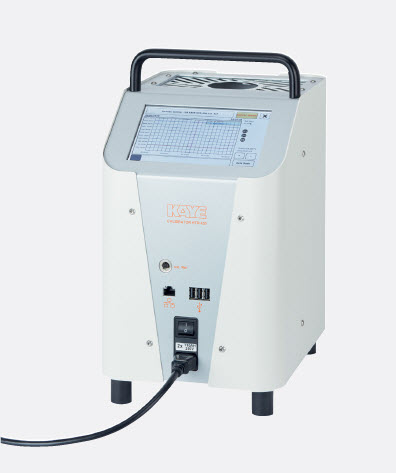

HTR-420 High Temperature Dry Block Calibrator
DRY BLOCK TEMPERATURE CALIBRATOR FLEXIBLE - EASY TO USE (30°C TO 420°C)
- Operating range of 30 to 420°C with temp stability of up to 0.01°C and uniformity of up to 0.1°C
- Fast Heating and Cooling times
- Calibration of up to 48 thermocouple with Dry Block insert savings hours of time
- Dry Block inserts are designed to accommodate thermocouples, IRTD, ValProbe flexible/bendable as well as RF ValProbe probes
- Software interface for all existing Kaye products (IRTD, Validator 2000, Validator AVS, ValProbe and RF ValProbe software for automatic / manual calibrations
- Easy to use touch screen
- Universal Power Supply 100 - 240 VAC / 50 - 60 Hz
